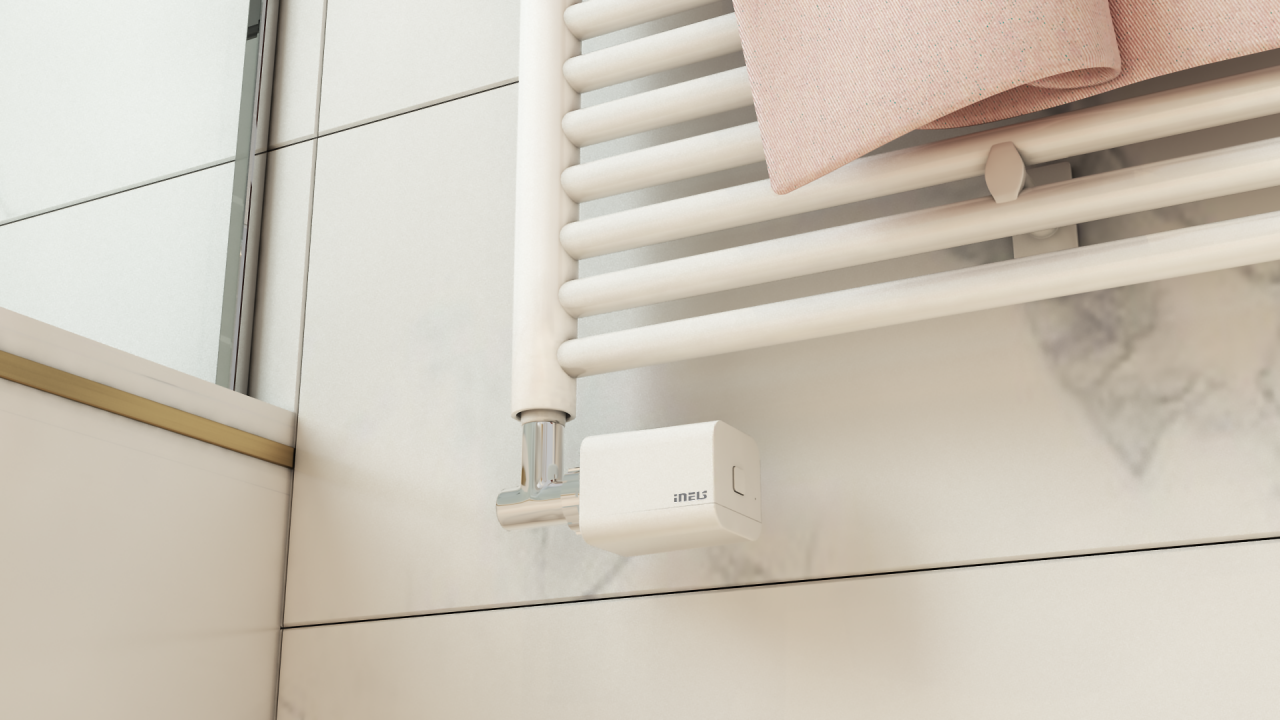

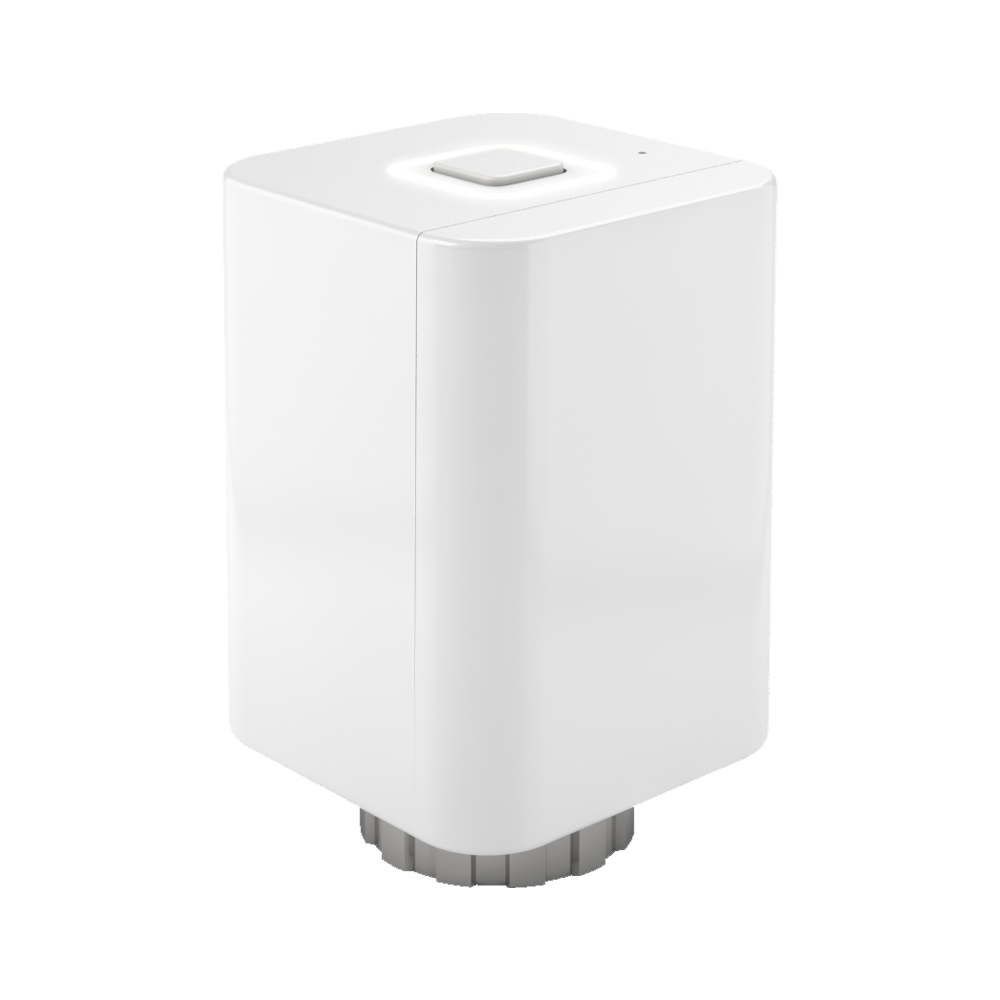

The wireless thermovalve is used to regulate the temperature in the room. It is installed directly on the radiator valve, where it immediately measures the temperature in the room with the help of an internal temperature sensor and regulates the radiator valve with the built-in motor. The valve can also be installed on valves in distribution boards when a temperature sensor from another element of the iNELS Wireless system will be used to measure the temperature in the room.
To use the functions of the valve, it is necessary to connect it to the eLAN-RF or RF Touch system units, which will ensure heating and control of the valve from the app (Android, iOS, Samsung Smart TV) and the system unit with manual or automatic temperature modes.
The valve measures the temperature in the range of 0...50°C and receives control instructions from the system units at a regular interval of every 6 minutes.
The valve supports functions of anti-freeze mode, open window detection, communication failure with the system unit and valve stiffening, which are described in detail below.
The valve supports hysteresis and offsets functions that can be set in the application or system unit.
Battery power 2x AA 1.5 V batteries (included in the package)
Communication range with system unit up to 200m (in open space), to increase the range or change the direction of the signal, it is possible to use the
RFRP-20N repeater or other units of the system with support for the repeater function.
In the base, the head is compatible with M30x1,5 valves, adapters that are not included in the package can be used for other valves.
