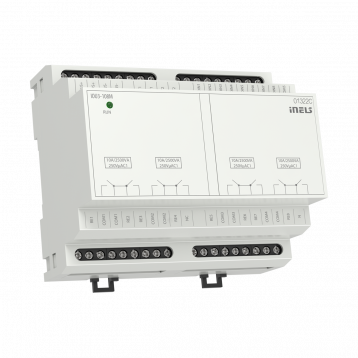

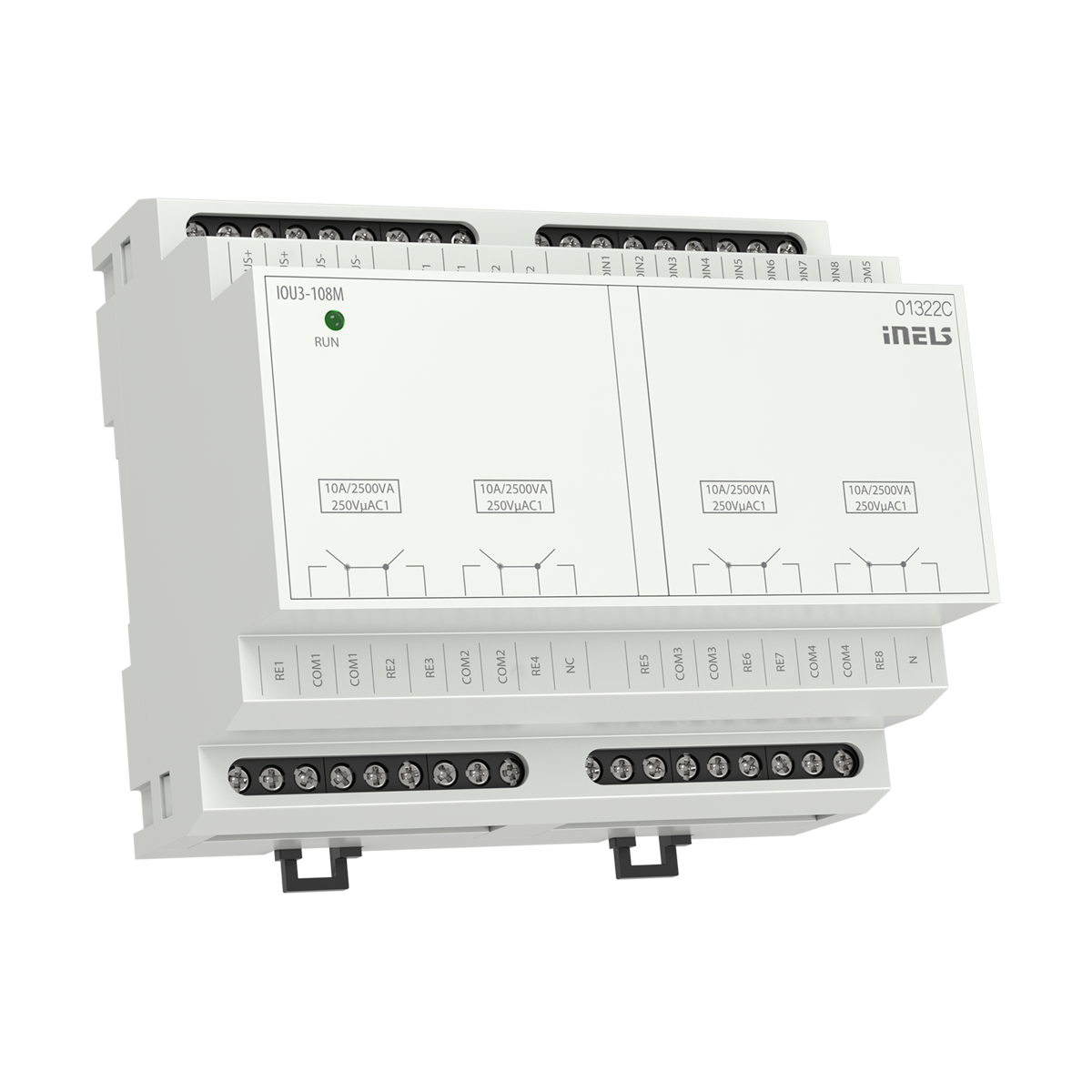

Universal unit with inputs and outputs, 10 inputs and 8 outputs - IOU3 -108M

EAN: 8595188181884 | Code: 8188 standard

DESCRIPTION

IOU3-108M is a combined actuator equipped with 8 binary inputs, 2 temperature inputs and 8 independent relays with switching potential-free contacts
Binary inputs IOU3-108M are used to connect up to 8 devices with a potentialfree contact (such as switches, buttons, burglar alarms and fire detectors or others).
The unit can be used to read pulses from energy meters with a pulse output.
The temperature inputs support the connection of the following temperature sensors: TC / TZ - 2-wire connection
They are used in cases where it is necessary to measure the temperature, eg floor/space, indoor/outdoor temperature, technological equipment - boiler rooms, solar heating, etc.
The maximum load capacity of the contacts is 10 A / 2500 VA / AC1.
Each of the output is individually controllable and addressable.
The relays are divided into four pairs, where each pair switches its common potential.
The actuator is designed for switching up to eight different appliances and loads via a relay output (potential-free contact).
IOU3-108M in 6-MODULE design is designed for mounting in a switchboard on DIN rail EN60715.
