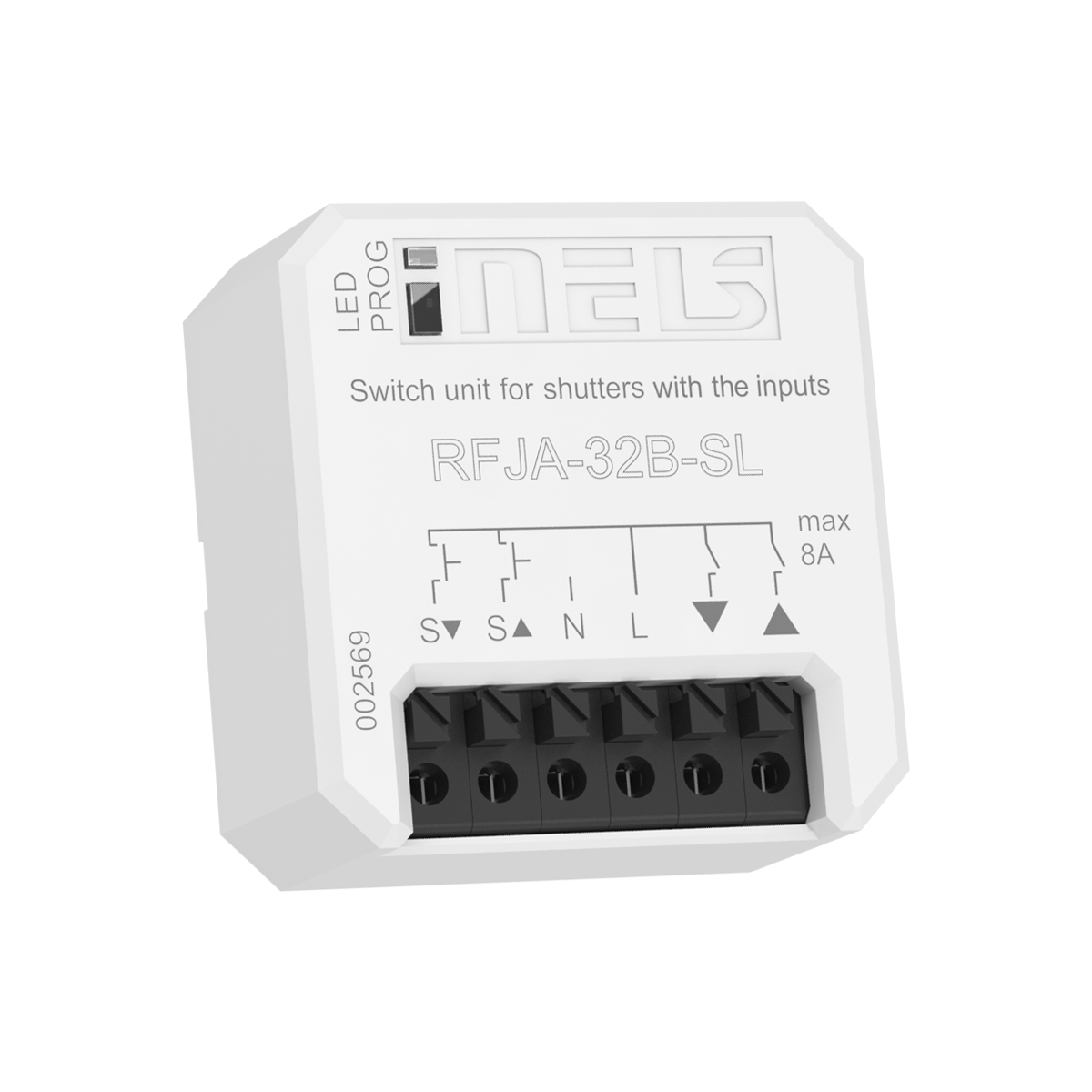

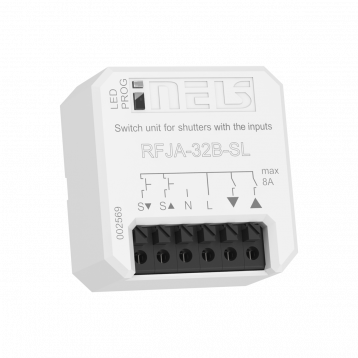

The switching unit for shutters has 2 output channels used to control garage doors, gates, blinds, awnings…
They can be combined with Controllers or iNELS RF Control System Components.
The BOX version offers to mount directly in the installation box, ceiling, or motor drive cover.
RFJA-32B / 230V: connection of switched load 2x 8 A (2x 2000 W), with the possibility of connecting existing wire buttons.
Short presses of the controller allow tilting of the slats, and long pressing of the raise / lower moves the blinds to the end position.
Each component can be controlled by up to 25 channels (1 channel represents one assigned controller).
The programming button on the device also serves as a manual output control.
For components, the repeater function can be set via the RFAF / USB service device.
Range up to 200 m (outdoors), in case of insufficient signal between the controller and the device, use the RFRP-20 signal repeater or components with the RFIO2 protocol that support this function.
Communication frequency with bidirectional protocol iNELS RF Control2 (RFIO2).
